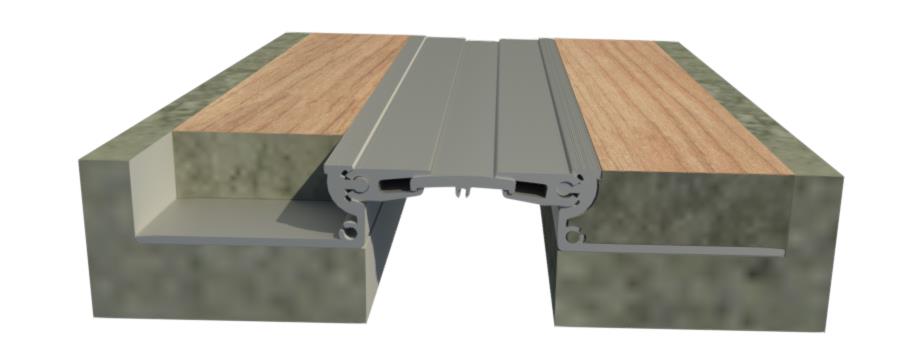

PFS TDS
View FileMODEL | JOINT WIDTH | MINIMUM OPENING | MAXIMUM OPENING | EXPOSED SURFACE | BLOCKOUT WIDTH | BLOCKOUT HEIGHT |
PFS-200 | 50mm | 11mm | 33mm | 77mm | VARIES | 35mm |
PFS-400 | 100mm | 45mm | 68mm | 84mm | VARIES | 35mm |
PFSW-200 | 50mm | 11mm | 33mm | 79mm | VARIES | 35mm |
PFSW-400 | 100mm | 45mm | 68mm | 84mm | VARIES | 35mm |
