PFT Series

PFW

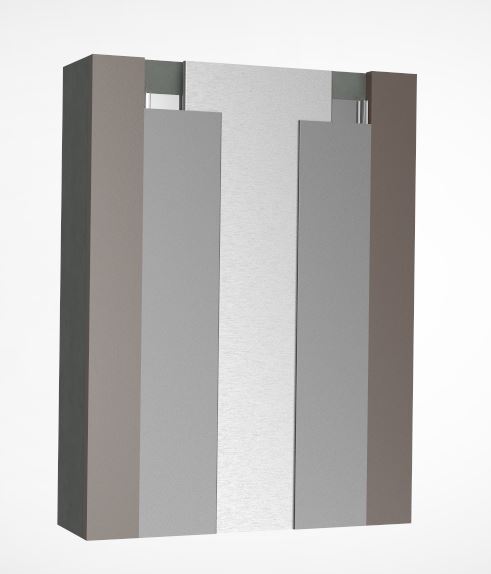

Tailored for interior applications prioritizing low maintenance and tamper resistance, this flush metal wall and ceiling cover is specifically designed to meet such criteria. The free-floating aluminum center plate spans the joint, sliding between retainer assemblies to facilitate necessary movement. The cover is customizable, as it can be painted to match a variety of finishes and is available in decorative alloys such as aluminum, brass, or stainless steel. Joint sizes are adaptable, ranging from 1" to 8". For larger sizes or custom applications, please contact the factory

Request A Quote

PFW & PFWC TDS

View File

PFW & PFWC- 200

View File

PFW & PFWC- 400

View File

PFW-600 & PFWC-600

View File

PFW & PFWC-800

View File



MODEL JOINT WIDTH MINIMUM OPENING MAXIMUM OPENING

SURFACE

EXPOSED

"A"

SURFACE

EXPOSED

"B"

BLOCKOUT WIDTH BLOCKOUT HEIGHT
 PFW-200 51mm 10mm89mm 197mm  N/A 73mm 16mm
 PFW-400 102mm 25mm 187mm 298mm  N/A 99mm 16mm
PFW-600 152mm 83mm 229mm 349mm  N/A 99mm 16mm
PFW-800 203mm 102mm 305mm 457mm  N/A 127mm 16mm
PFWC-200 51mm 30mm 70mm 108mm 76mm 73mm 16mm
PFWC-400 102mm 64mm 145mm 181mm 131mm 99mm 16mm
PFWC-600 152mm 118mm 191mm 235mm 133mm 99mm 16mm
PFWC-800 203mm 152mm 254mm 315mm 133mm 127mm 16mm
