PFT Series

PJP

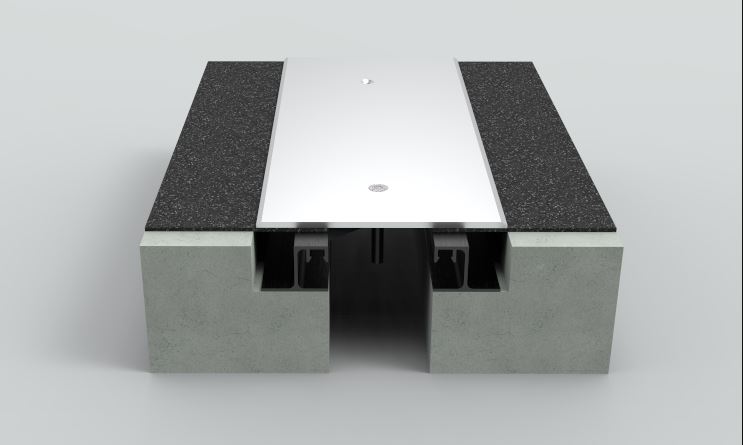

This surface-mounted metal floor cover is for interior or exterior applications. The self-centering aluminum center plate allows for thermal and seismic movement of up to 100% of the joint width. Joint sizes range from 1" to 16". Contact the factory for larger sizes or custom applications.

PJP-600 & PJPW-600

View File

PJP-800 & PJPW-800

View File

PJP-1000 & PJPW-1000

View File

PJP-1200 & PJPW-1200

View File

PJP-1400 & PJPW-1400

View File

PJP-1600 & PJPW-1600

View File

PJP-100/200 & PJPW- 100/200

View File

PJP 400& PJPW 400

View File
MODEL JOINT WIDTH MINIMUM OPENINGMAXIMUM OPENINGEXPOSED  SURFACEBLOCKOUT WIDTH BLOCKOUT HEIGHT
PJP-100 25mm13mm102mm114mm64mm38mm
PJP-200 51mm25mm114mm114mm57mm38mm
PJP-400 102mm25mm191mm191mm57mm38mm
PJP-600 152mm25mm283mm297mm57mm38mm
PJP-800 203mm25mm362mm381mm57mm38mm
PJP-1000 254mm25mm425mm457mm57mm38mm
PJP-1200 305mm25mm533mm533mm57mm38mm
PJP-1400 356mm25mm603mm610mm57mm38mm
PJP-1600 406mm25mm616mm686mm57mm38mm
PJPW-100 25mm0mm64mm83mm64mm38mm
PJPW-200 51mm0mm83mm83mm57mm38mm
PJPW-400 102mm0mm146mm146mm57mm38mm
PJPW-600 152mm0mm216mm223mm57mm38mm
PJPW-800 203mm114mm254mm292mm57mm38mm
PJPW-1000 254mm140mm338mm356mm57mm38mm
PJPW-1200 305mm165mm419mm419mm57mm38mm
PJPW-1400 356mm191mm476mm483mm57mm38mm
PJPW-1600 406mm216mm508mm546mm57mm38mm

PJP & PJPW Installation Manual

View File
