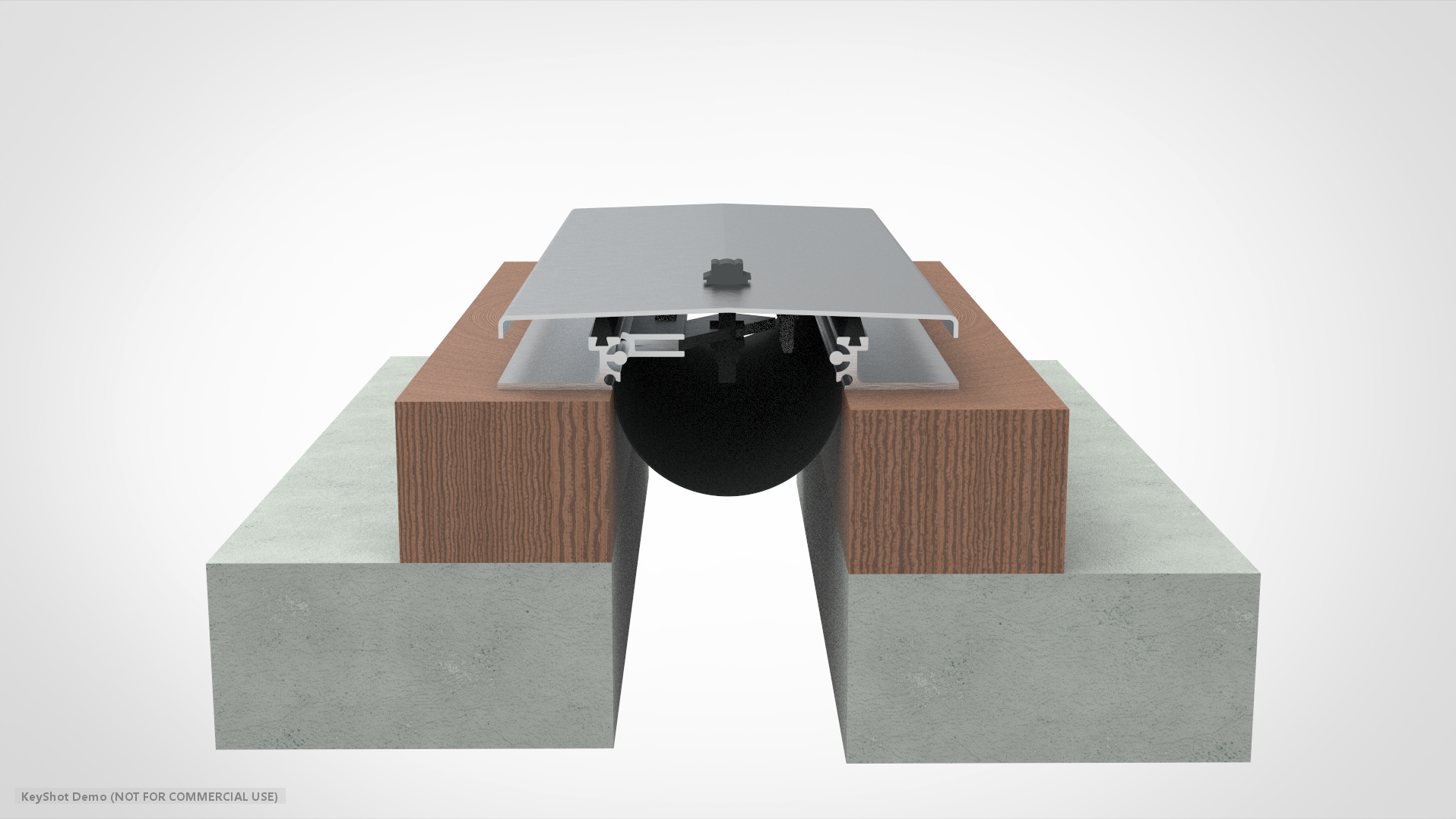

Tailored for seismic applications, this aluminum roof cover serves as an ideal solution, ensuring a watertight transition when exterior wall seals are in place. The system offers custom, factory-made transitions to guarantee watertight results. Joint sizes are versatile, ranging from 3" to 16". For larger sizes or custom applications, please reach out to the factory.

PRI-200 & PRIW-200

View File

PRI-400 & PRIW-400

View File

PRI-600 & PRIW-600

View File

PRI-800 & PRIW-800

View File

PRI-1000 & PRIW-1000

View File

PRI-1200 & PRIW-1200

View File

PRI-1400 & PRIW-1400

View File

PRI-1600 & PRIW-1600

View File

PRI-2000M & PRIW-2000M

View File
MODEL JOINT WIDTH MINIMUM OPENINGMAXIMUM OPENINGEXPOSED  SURFACEBLOCKOUT WIDTH BLOCKOUT HEIGHT
PRl-200 50mm25mm104mm170mmN/A N/A
PRl-400 100mm25mm150mm195mmN/A N/A
PRl-600 150mm25mm225mm245mmN/A N/A
PRl-800 200mm27mm250mm295mmN/A N/A
PRlW-200 50mm0mm77mm110mmN/A N/A
PRlW-400 100mm0mm147mm141mmN/A N/A
PRlW-600 150mm0mm150mm191mmN/A N/A
PRlW-800 200mm114mm235mm241mmmN/A N/A

PRI-PRIW installation Manual

View File
