PFT Series

PRJ

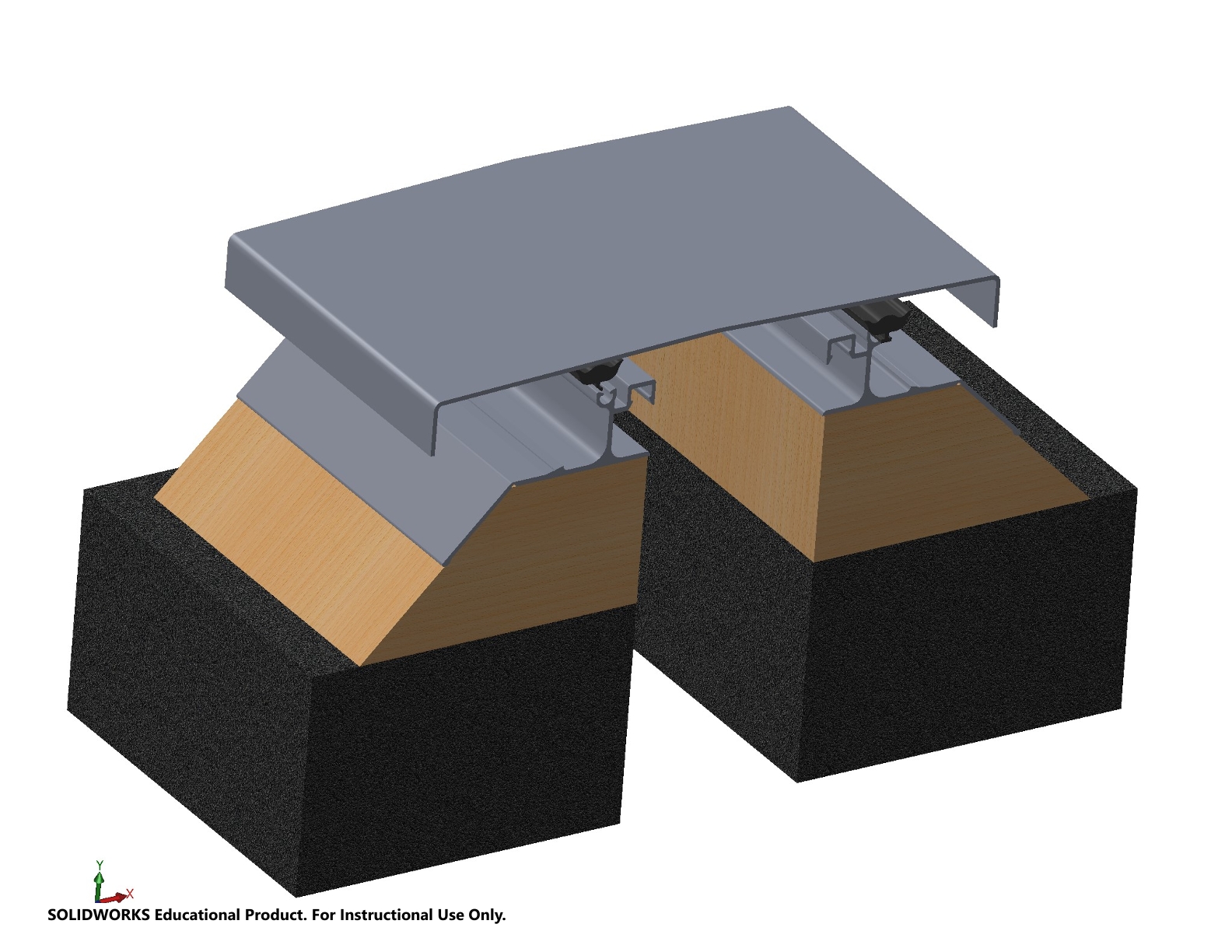

Tailored for seismic applications, this aluminum roof cover serves as an ideal solution, ensuring a watertight transition when exterior wall seals are in place. The system offers custom, factory-made transitions to guarantee watertight results. Joint sizes are versatile, ranging from 3" to 16". For larger sizes or custom applications, please reach out to the factory.

Request A Quote

PRJ & PRJW TDS

View File

PRJ & PRJW-400

View File

PRJ & PRJW-600

View File

PRJ & PRJW- 800

View File

PRJ PRJW- 1000

View File

PRJ & PRJW-1200

View File

PRJ & PRJW 1400

View File

PRJ & PRJW 1600

View File
MODELJOINT WIDTHMINIMUM OPENINGMAXIMUM OPENINGEXPOSED SURFACEBLOCKOUT WIDTHBLOCKOUT HEIGHT
PRJ-400102mm25mm191mm305mmN/AN/A
PRJ-600152mm25mm298mm375mmN/AN/A
PRJ-800203mm25mm318mm457mmN/AN/A
PRJ-1000254mm25mm425mm525mmN/AN/A
PRJ-1200305mm25mm527mm600mmN/AN/A
PRJ-1400356mm25mm533mm675mmN/AN/A
PRJ-1600406mm25mm616mm725mmN/AN/A
PRJW-400102mm0mm159mm203mmN/AN/A
PRJW-600152mm0mm222mm262mmN/AN/A
PRJW-800203mm114mm260mm303mmN/AN/A
PRJW-1000254mm140mm337mm386mmN/AN/A
PRJW-1200305mm165mm413mm450mmN/AN/A
PRJW-1400356mm191mm445mm513mmN/AN/A
PRJW-1600406mm216mm508mm563mmN/AN/A

PRJ & PRJW Installation Manual

View File
