PFT Series

PSFW X

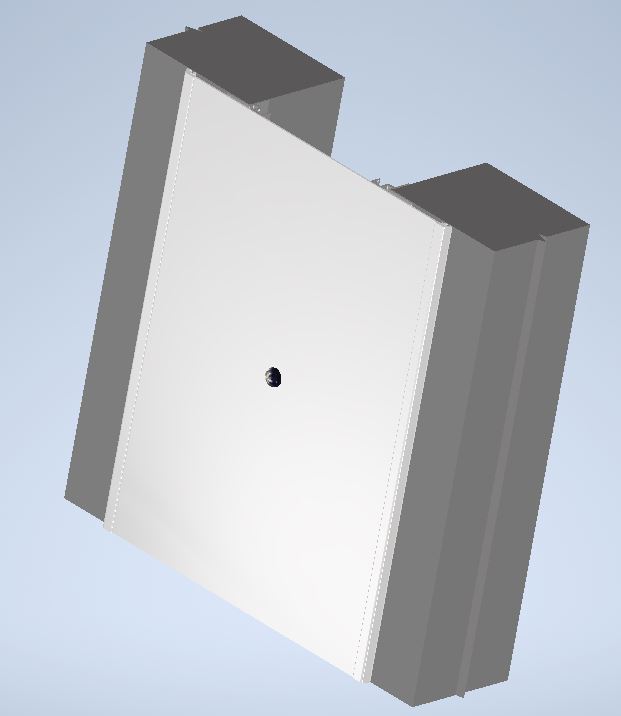

Designed to complement specific metal floor covers, this surface-mounted metal wall cover is an ideal choice for exterior applications where low maintenance is a priority. The self-centering aluminum center plate spans the joint and smoothly slides between retainer assemblies, accommodating necessary movement. Customization is possible, as the cover can be painted to match the wall finish. Joint sizes are versatile, ranging from 4" to 16". For larger sizes or custom applications, please contact the factory.

Request A Quote

PSFWX & PSCWX TDS

View File

PSFW & PSCW- 400X

View File

PSFW & PSCW 600X

View File

PSFW & PSCW-800X

View File

PSFW & PSCW 1000X

View File

PSFW & PSCW 1200X

View File

PSFW & PSCW-1400 X

View File

PSFW & PSCW-1600 X

View File
MODELJOINT WIDTHMINIMUM OPENINGMAXIMUM OPENINGEXPOSED SURFACEBLOCKOUT WIDTHBLOCKOUT HEIGHT
PSFWX-400 102mm73mm184mm197mmN/A N/A
PSFWX-600 152mm73mm235mm278mmN/A N/A
PSFWX-800 203mm73mm359mm330mmN/A N/A
PSFWX-1000 254mm73mm448mm406mmN/A N/A
PSFWX-1200 305mm73mm470mm514mmN/A N/A
PSFWX-1400 356mm73mm578mm554mmN/A N/A
PSFWX-1600 406mm73mm657mm579mmN/A
PSCWX-400 102mm10mm141mm151mmN/A N/A
PSCWX-600 152mm10mm224mm216mmN/A N/A
PSCWX-800 203mm138mm281mm266mmN/A N/A
PSCWX-1000 254mm164mm353mm330mmN/A N/A
PSCWX-1200 305mm189mm389mm410mmN/A N/A
PSCWX-1400 356mm214mm467mm457mmN/A N/A
PSCWX-1600 406mm240mm492mm492mmN/A N/A
