PFT Series

PSR:SP

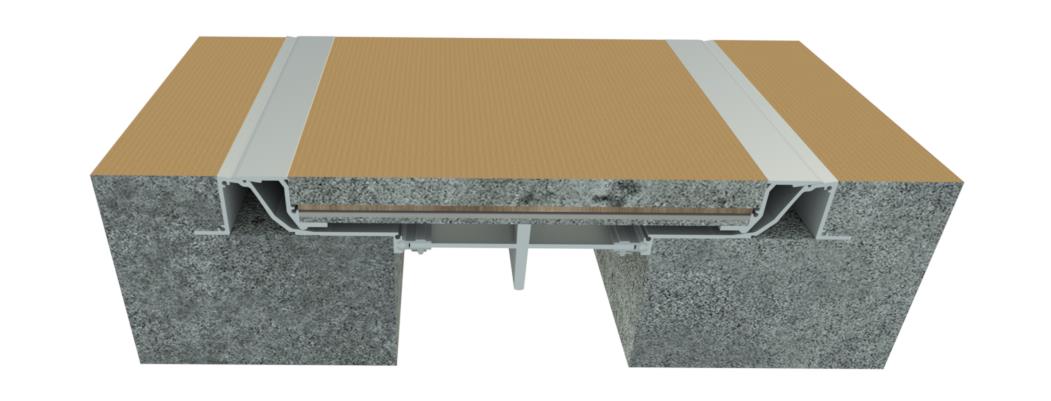

This aluminum cover is designed for interior and exterior seismic applications for cover concealment in deeper floor finishes. The Serrated plate has a deep recess that accepts thicker floor finish materials up to 1". The caulk joints expand and contract for minor thermal movement while the center pan assembly lifts and returns to a normal position after a seismic event. Joint sizes range from 2" and above. Contact factory for larger sizes or custom applications.

Request A Quote

PSR PSRW 600 SP

View File

PSR PSRW 800 SP

View File

PSR PSRW 1000 SP

View File

PSR PSR 1200 SP

View File

PSR PSR 1400 SP

View File

PSR PSRW 1600 SP

View File

PSR PSR 1800 SP

View File

PSR PSR 2000 SP

View File

PSR PSRW 2200 SP

View File

PSR PSRW 2400 SP

View File
MODEL JOINT WIDTH MINIMUM OPENINGMAXIMUM OPENINGEXPOSED  SURFACEBLOCKOUT WIDTH BLOCKOUT HEIGHT
PSR-600 SP152mm70mm232mm451mm191mm64mm
PSR-800 SP203mm108mm311mm527mm203mm64mm
PSR-1000 SP254mm108mm387mm603mm216mm64mm
PSR-1200 SP 305mm108mm464mm679mm229mm64mm
PSR-1400 SP356mm108mm540mm756mm241mm64mm
PSR-1600 SP 406mm108mm616mm832mm254mm64mm
PSRW-600 SP 152mm 27mm 248mm 348mm 236mm 64mm
PSRW-800 SP 203mm 27mm 324mm 424mm 262mm 64mm
PSRW-1000 SP254mm 27mm 400mm 500mm 287mm 64mm
PSRW-1200 SP 305mm 27mm 476mm 576mm 313mm 64mm
PSRW-1400 SP 356mm 27mm 552mm 653mm 338mm 64mm
PSRW-1600 SP406mm 27mm 629mm 729mm 363mm 64mm
