PFT Series

PZB

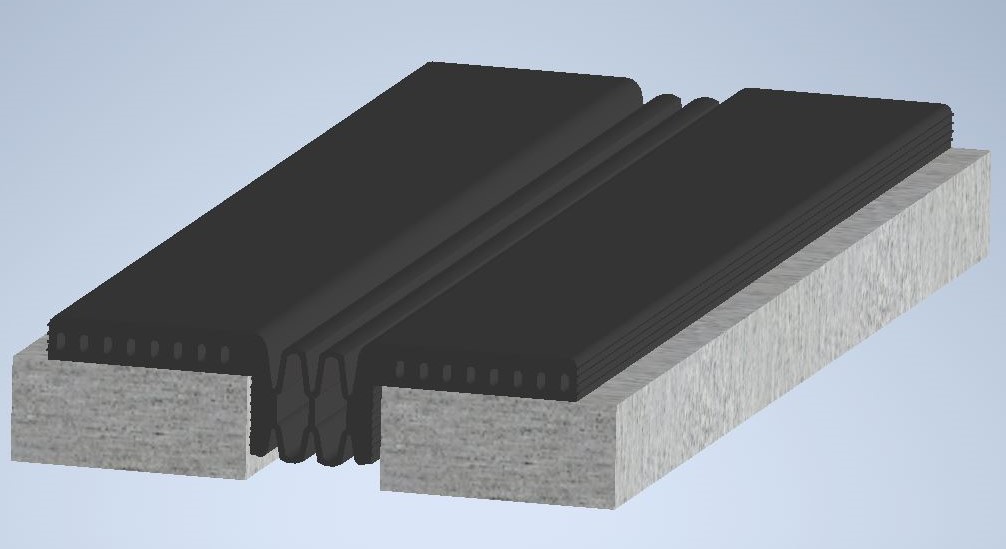

Designed as a one-piece solution for parking expansion joints, this cover features an EPDM seal that facilitates movement, eliminating the need for elastomeric concrete. During installation, the cover is bonded into a high-strength epoxy bedding and sealed on each side with a urethane sealant, creating a durable and watertight system. It is conveniently available in five standard roll sizes - 20', 30', 65', 130', and 200'. Joint sizes are adaptable, ranging from 1" to 4". For larger sizes or custom applications, please contact the factory.

Request A Quote

PZB TDS

View File

PZB-200 & PZBW-200

View File

PZB-400 & PZBW-400

View File

PZB & PZBW 100

View File
MODELJOINT WIDTHMINIMUM OPENINGMAXIMUM OPENINGEXPOSED SURFACEBLOCKOUT WIDTHBLOCKOUT HEIGHT
PZB-100 25mm13m38mm200mm89mm19mm
PZB-200 51mm25mm76mm229mm89mm19mm
PZB-400102mm51mm152mm279mm89mm19mm
PZB-100W25mm13m38mm113mm89mm19mm
PZB-200W 51mm25mm76mm139mm89mm19mm
PZB-400W102mm51mm152mm190mm89mm19mm

PZB Installation manual

View File
