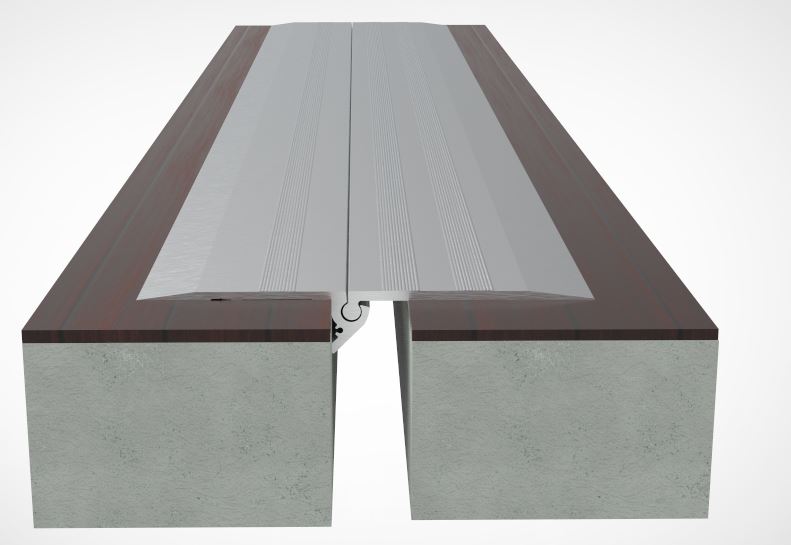

As part of our Retrofit line, this aluminum cover is designed for surface mounting, offering quick installation, low maintenance, and resistance to rolling loads, distortion, and wear. It efficiently accommodates vertical offsets, and a gradual taper minimizes bumps. The single-hinged assembly is capable of accommodating a 1 3/8" slab offset in floor elevation. Joint sizes are available within the range of 1" to 4".

PFD & PFDW -200

View File

PFD & PFDW -400

View File

PFD & PFDW -100

View File
MODELJOINT WIDTHMINIMUM OPENINGMAXIMUM OPENINGEXPOSED SURFACEBLOCKOUT WIDTHBLOCKOUT HEIGHT
PFD-100 25mm19mm102mm238mmN/A N/A
PFD-200 51mm19mm102mm238mmN/A N/A
PFD-400102mm19mm152mm289mmN/A N/A
PFDW-10025mm19mm102mm137mmN/A N/A
PFDW-20051mm19mm102mm137mmN/A N/A
PFDW-400 102mm19mm152mm187mmN/A N/A

PFD & PFDW Installation Manual
