PFT Series

PJHD

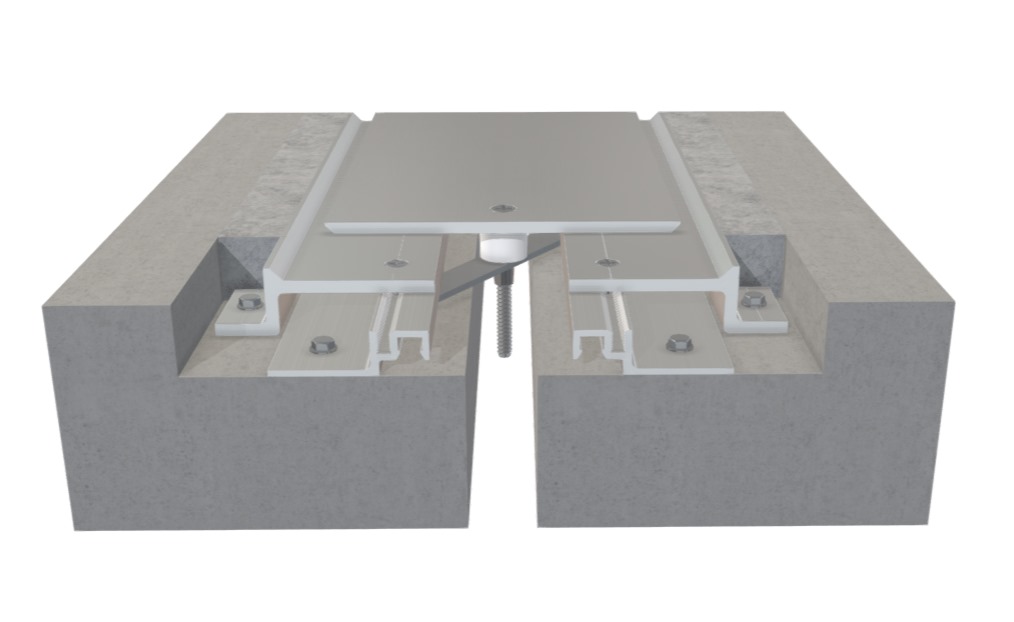

This metal floor cover, designed for both interior and exterior use, is flush-mounted and capable of accommodating substantial rolling loads. The aluminum center plate, which self-centers to maintain a flush profile during thermal shifts, exhibits temporary displacement and sliding over the floor surface in response to seismic movement. The joint sizes vary from 1" to 8", and for larger sizes or custom applications, it is recommended to get in touch with the factory.

Request A Quote

PJHD & PJHDW TDS

View File

PJHD & PJHD 200

View File

PJHD & PJHDW 400

View File

PJHD & PJHDW 600

View File

PJHD & PJHDW 800

View File
MODEL JOINT WIDTH MINIMUM OPENING MAXIMUM OPENING EXPOSED SURFACE BLOCKOUT WIDTH BLOCKOUT HEIGHT
PJ-200HD51mm19mm111mm219mm118mm35mm
PJ-400HD102mm70mm162mm222mm92mm35mm
PJ-600HD152mm70mm235mm298mm105mm35mm
PJ-800HD203mm70mm343mm375mm118mm35mm
PJW-200HD51mm10mm110mm134mm118mm35mm
PJW-400HD102mm25mm161mm162mm92mm35mm
PJW-600HD152mm25mm224mm226mm105mm35mm
PJW-800HD203mm137mm280mm289mm118mm35mm

PJHD INSTALLATION MANUAL

View File
