PFT Series

PKBC

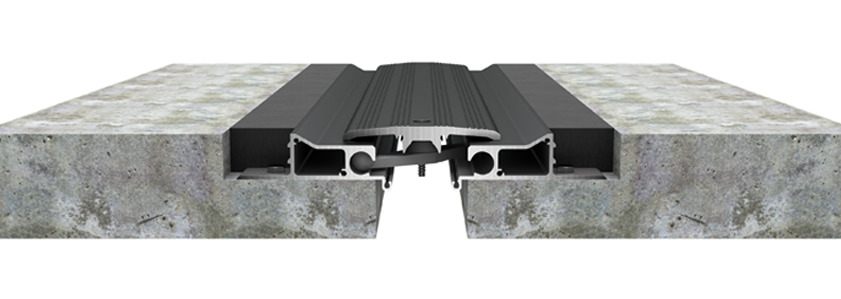

Engineered to withstand damage commonly caused by dynamic wheel loads in parking structures, this all-metal expansion joint cover is designed for durability. The unique turn bar assembly and bolt housing provide protection against damage from vehicular traffic. Specifically intended for 'cast in place' installation, this model ensures robust performance. Joint sizes are available within the range of 4" to 8". For larger sizes or custom applications, please reach out to the factory.

PKBC & PKBCW 400

View File

PKBC & PKBCW- 600

View File
MODELJOINT WIDTHMINIMUM OPENINGMAXIMUM OPENINGEXPOSED SURFACEBLOCKOUT WIDTHBLOCKOUT HEIGHT
PKBC-400 102mm51mm165mm281mm165mm51mm
PKBC-600 152mm51mm241mm406mm203mm51mm
PKBCW-400 102mm76mm133mm191mm165mm51mm
PKBCW-600 152mm102mm197mm278mm203mm51mm
