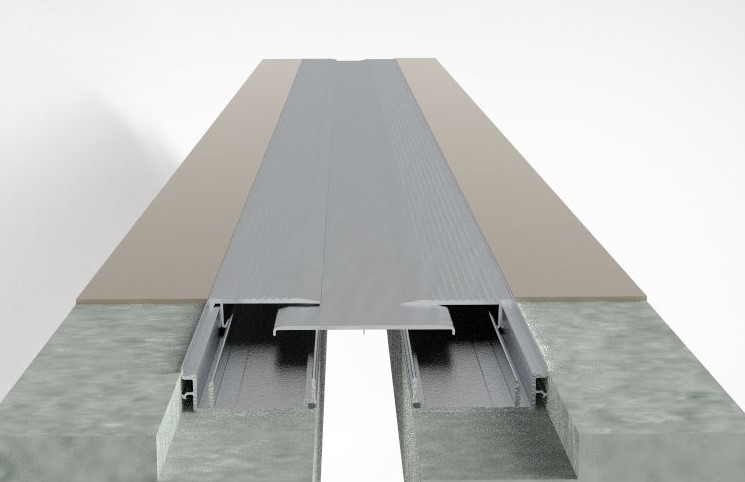

This recessed cover, constructed entirely of metal, is versatile for both interior and exterior use. It features a free-floating aluminum center plate that spans the joint and slides between frame assemblies, enabling movement as needed. The cover is well-suited for applications requiring low maintenance and tamper resistance. It is offered in various metal finishes, and joint sizes are available from 1" to 4". For larger sizes or custom applications, please reach out to the factory.

PLS & PLSW 200

View File

PLS & PLSW 300

View File

PLS & PLSW 400

View File

PLS 100 & PLSW 100

View File
MODELJOINT WIDTHMINIMUM OPENINGMAXIMUM OPENINGEXPOSED SURFACEBLOCKOUT WIDTHBLOCKOUT HEIGHT
PLS-10025mm0mm57mm127mm51mm25mm
PLS-20051mm0mm102mm197mm73mm25mm
PLS-30076mm22mm152mm273mm99mm25mm
PLS-400102mm22mm178mm298mm99mm25mm
PLSW-10025mm13mm43mm76mm51mm25mm
PLSW-20051mm25mm76mm124mm73mm25mm
PLSW-30076mm37mm116mm175mm99mm25mm
PLSW-400102mm62mm140mm200mm99mm25mm

PLS Installation Manual

View File

PLSW Installation Manual

View File
