PFT Series

PPF

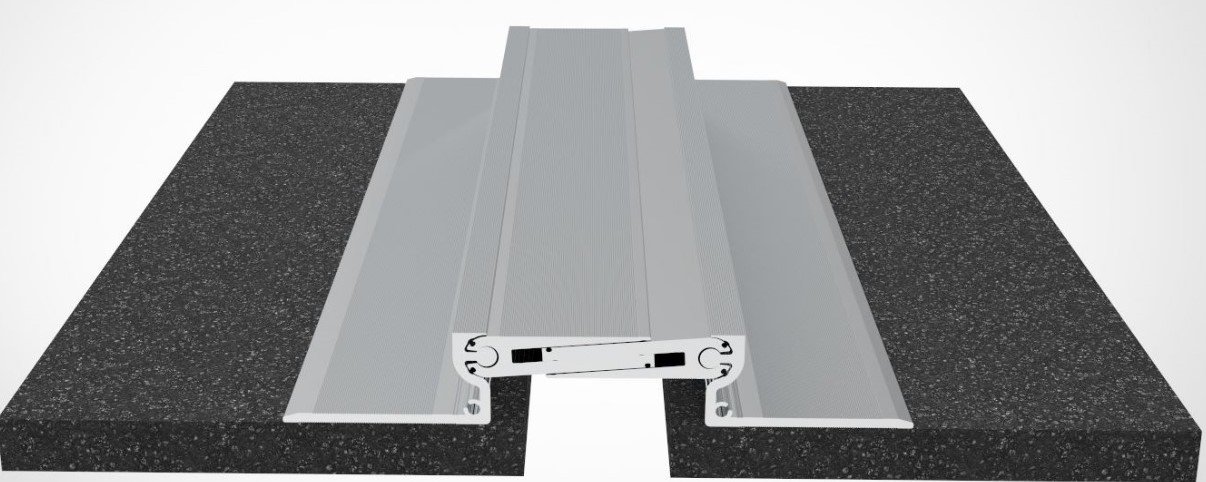

Tailored for high-traffic interior environments like malls and airports, this recessed, all-metal cover is specifically engineered to endure substantial foot activity. Its distinctive interlocking design permits horizontal movement and offers some vertical deflection, ensuring resilience against heavy rolling loads. Various frame heights are at your disposal, and joint sizes are adaptable within the 1" to 4" range. For larger sizes or custom applications, please reach out to the factory.

Request A Quote

PPF & PPFW TDS

View File

PPF & PPFW 100

View File

PPF-200x2

View File

PPF & PPFW 400

View File

PPF & PPFW 400HD

View File
MODELJOINT WIDTHMINIMUM OPENINGMAXIMUM OPENINGEXPOSED SURFACEBLOCKOUT WIDTHBLOCKOUT HEIGHT
PPF-100 25mm19mm32mm43mm64mm26mm
PPF-200 51mm41mm60mm83mm76mm50mm
PPF-400 102mm76mm125mm128mm84mm30mm
PPF-400(HD)102mm76mm125mm128mm97mm38mm
PPFW-100 25mm19mm32mm43mm64mm26mm
PPFW-200 51mm41mm60mm83mm92mm50mm
PPFW-400 102mm83mm121mm111mm134mm30mm
PPFW-400(HD)102mm83mm121mm114mm109mm38mm

PPF & PPFW Installation Manual

View File
