PFT Series

PSFM

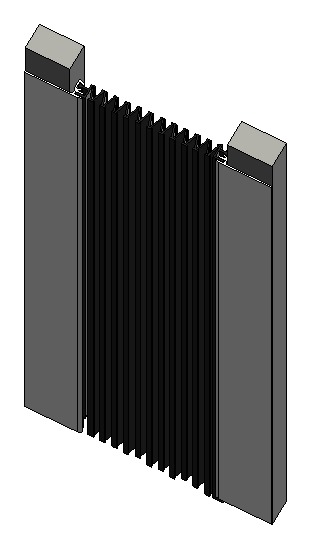

An expansion joint wall model with aluminum extrusion and rubber material accommodates movement in walls to prevent damage from thermal expansion, contraction, or structural shifts. The aluminum extrusion is durable and corrosion-resistant, providing aesthetic integration. The rubber insert absorbs and cushions movement. This system is installed during construction and is suitable for various building types, helping manage structural movement for longevity and safety.

MODELJOINT WIDTHMINIMUM OPENINGMAXIMUM OPENINGEXPOSED SURFACEBLOCKOUT WIDTHBLOCKOUT HEIGHT
PSFM-100 25mm 32mm 76mm 105mm N/A N/A
PSFM-200 50mm 32mm 76mm 130mm N/A N/A
PSFM-400 100mm 32mm 152mm 180mm N/A N/A
PSFM-600 150mm 44mm 229mm 230mm N/A N/A
PSFM-800 200mm 64mm 305mm 280mm N/A N/A
PSFM-1000 250mm 64mm 381mm 330mm N/A N/A
PSFM-1200 300mm 64mm 460mm 380mm N/A N/A
PSFMW-100 25mm 13mm 38mm 58mm N/A N/A
PSFMW-200 50mm 25mm 76mm 89mm N/A N/A
PSFMW-400 100mm 50mm 152mm 139mm N/A N/A
PSFMW-600 150mm 75mm 225mm 189mm N/A N/A
PSFMW-800 200mm 100mm 305mm 239mm N/A N/A
PSFMW-1000 250mm 125mm 375mm 289mm N/A N/A
PSFMW-1200 300mm 150mm 450mm 339mm N/A N/A
