PFT Series

PSFW

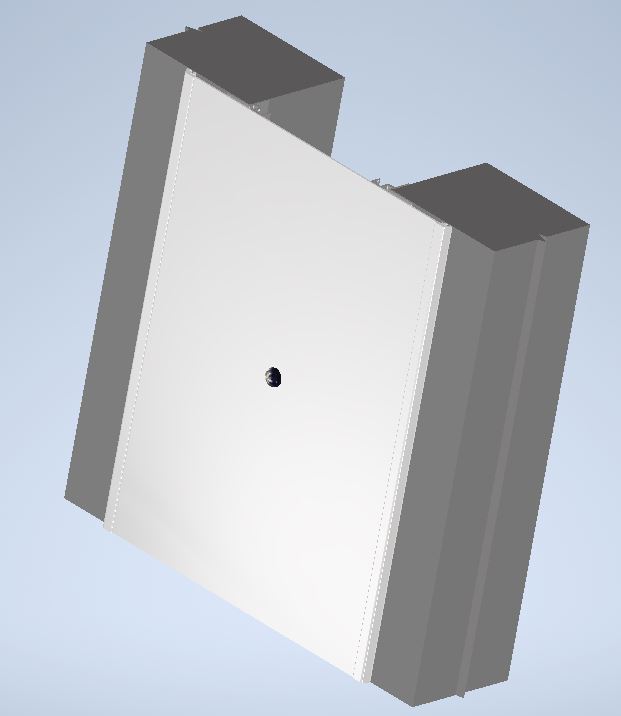

Designed to complement specific metal floor covers, this surface-mounted metal wall cover is an ideal choice for interior applications where low maintenance is a priority. The self-centering aluminum center plate spans the joint and smoothly slides between retainer assemblies, accommodating necessary movement. Customization is possible, as the cover can be painted to match the wall finish. Joint sizes are versatile, ranging from 4" to 16". For larger sizes or custom applications, please contact the factory.

Request A Quote

PSFW & PSCW TDS

View File

PSFW 400 & PSCW 400

View File

PSFW 600 & PSCW 600

View File

PSFW 800 & PSCW 800

View File

PSFW 1000 & PSCW 1000

View File

PSFW 1200 & PSCW 1200

View File

PSFW 1400 & PSCW-1400

View File

PSFW 1600 & PSCW-1600

View File
MODELJOINT WIDTHMINIMUM OPENINGMAXIMUM OPENINGEXPOSED SURFACEBLOCKOUT WIDTHBLOCKOUT HEIGHT
PSFW-400 102mm73mm184mm191mmN/A N/A
PSFW-600 152mm73mm235mm303mmN/A N/A
PSFW-800 203mm73mm359mm381mmN/A N/A
PSFW-1000 254mm73mm448mm456mmN/A N/A
PSFW-1200 305mm73mm470mm533mmN/A N/A
PSFW-1400 356mm73mm578mm608mmN/A N/A
PSFW-1600 406mm73mm657mm686mmN/A N/A
PSCW-400 102mm10mm141mm146mmN/A N/A
PSCW-600 152mm10mm224mm229mmN/A N/A
PSCW-800 203mm138mm281mm292mmN/A N/A
PSCW-1000 254mm164mm353mm356mmN/A N/A
PSCW-1200 305mm189mm389mm419mmN/A N/A
PSCW-1400 356mm214mm467mm483mmN/A N/A
PSCW-1600 406mm240mm492mm546mmN/A N/A

PSFW & PSCW Installation Manual

View File
