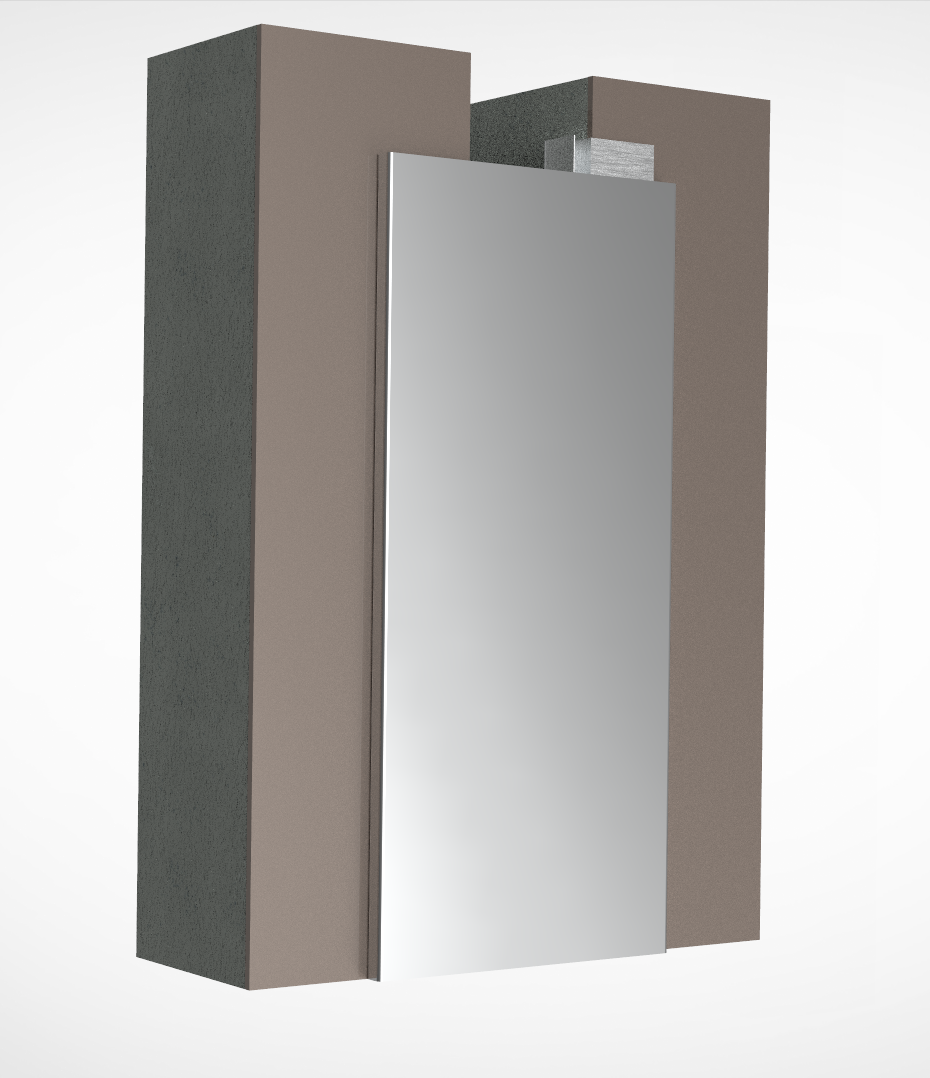

Tailored for interior applications that prioritize low maintenance and tamper resistance, this surface-mounted metal wall and ceiling cover is a versatile choice. Its free-floating aluminum center plate spans the joint, sliding over the wall or ceiling surface to facilitate movement when necessary. The cover can be painted to match a variety of finishes and is offered in multiple metal finishes. Joint sizes are available within the range of 1" to 4". For larger sizes or custom applications, please reach out to the factory.

PSM-100 & PSMC 100

View File

PSM-200 & PSMC-200

View File

PSM-400 & PSMC-400

View File

PSM-600 & PSMC-600

View File

PSM-800 & PSMC -800

View File
MODELJOINT WIDTHMINIMUM OPENINGMAXIMUM OPENINGSURFACE EXPOSEDBLOCKOUT WIDTHBLOCKOUT HEIGHT
PSM-100 25mm10mm38mm80mmN/A N/A
PSM-200 51mm10mm76mm118mmN/A N/A
PSM-400 102mm10mm152mm194mmN/A N/A
PSMC-100 25mm13mm38mm48mmN/A N/A
PSMC-200 51mm13mm76mm86mmN/A N/A
PSMC-400 102mm13mm152mm162mmN/A N/A



PSM & PSMC installation Manual

View File
