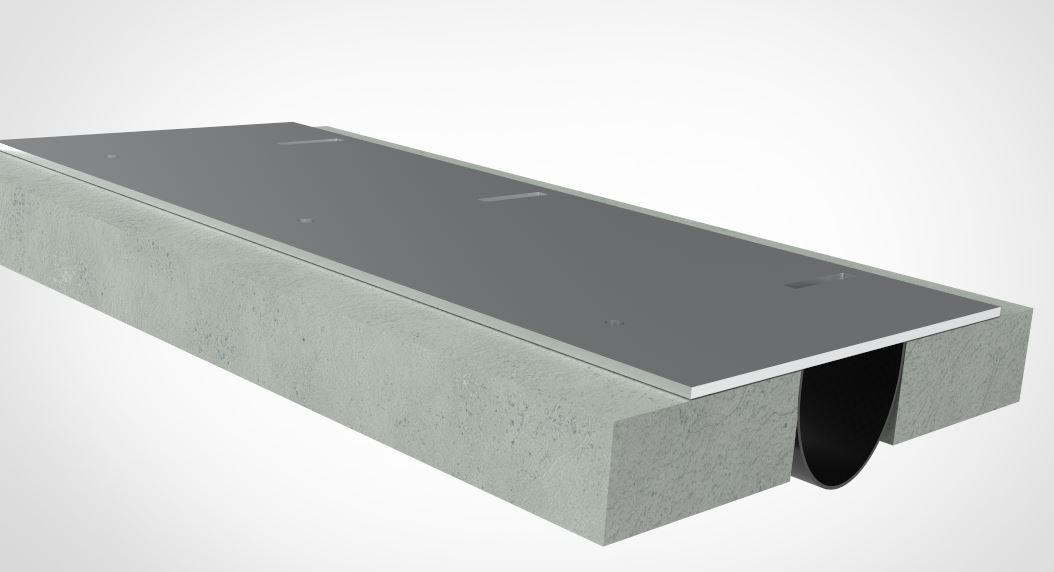

PC PLATE TDS ( Floor To Floor)
View File| MODEL | JOINT WIDTH | MINIMUM OPENING | MAXIMUM OPENING | EXPOSED SURFACE | BLOCKOUT WIDTH | BLOCKOUT HEIGHT |
| PC-100 | 25 mm | 10mm | 89mm | 159mm | N/A | N/A |
| PC-200 | 51mm | 10mm | 89mm | 159mm | N/A | N/A |
| PC-400 | 102mm | 10mm | 165mm | 235mm | N/A | N/A |
| PC-600 | 152mm | 10mm | 241mm | 311mm | N/A | N/A |
| PC-800 | 203mm | 10mm | 318mm | 387mm | N/A | N/A |
| PC-1000 | 254mm | 10mm | 394mm | 464mm | N/A | N/A |
| PC-1200 | 305mm | 10mm | 470mm | 540mm | N/A | N/A |
| PC-1400 | 356mm | 10mm | 546mm | 616mm | N/A | N/A |
| PC-1600 | 406mm | 10mm | 622mm | 692mm | N/A | N/A |
| PCW-100 | 26 mm | 10mm | 89mm | 95mm | N/A | N/A |
| PCW-200 | 51mm | 10mm | 89mm | 95mm | N/A | N/A |
| PCW-400 | 102mm | 10mm | 165mm | 171mm | N/A | N/A |
| PCW-600 | 152mm | 10mm | 241mm | 248mm | N/A | N/A |
| PCW-800 | 203mm | 10mm | 318mm | 324mm | N/A | N/A |
| PCW-1000 | 254mm | 10mm | 394mm | 400mm | N/A | N/A |
| PCW-1200 | 305mm | 10mm | 470mm | 476mm | N/A | N/A |
| PCW-1400 | 356mm | 10mm | 546mm | 552mm | N/A | N/A |
| PCW-1600 | 406mm | 10mm | 622mm | 629mm | N/A | N/A |
