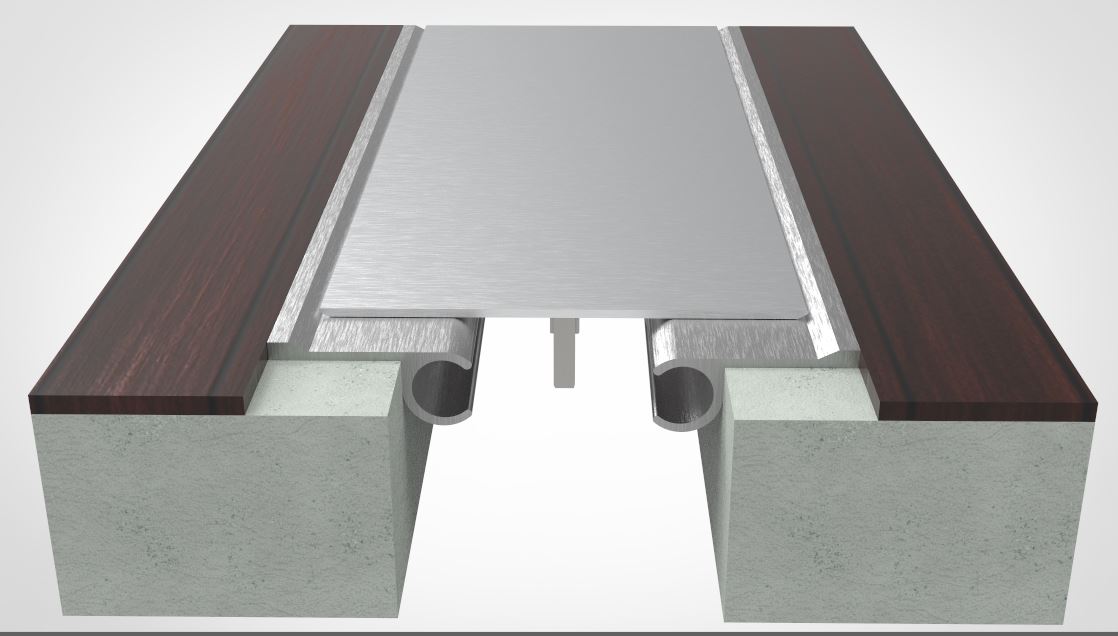

This surface-mounted metal floor cover is a versatile solution designed for interior use in both new and retrofit applications. The joint is customizable to accommodate up to 100% movement, making it suitable for a range of purposes, including interior applications, new constructions, or retrofits where substantial movement is expected. Performance-wise, the self-centering aluminum cover plate is engineered to facilitate thermal movement and limited seismic movement. The standard finishes for the cover plate include a mill finish, with the option to receive a brushed & ensuring both functionality and an aesthetically refined appearance for diverse applications.

PFI & PFIW-300

View File

PFI & PFIW-400

View File

PFI & PFIW-500

View File

PFI & PFIW-600

View File

PFI & PFIW-700

View File

PFI & PFIW-800

View File

PFI & PFIW-1200

View File

PFI 1000 & PFIW 1000

View File
MODELJOINT WIDTHMINIMUM OPENINGMAXIMUM OPENINGSURFACE EXPOSED
PFI-400100mm56mm176mm182mm
PFI-600150mm56mm226mm232mm
PFI-800200mm56mm276mm328mm
PFI-1000250mm56mm326mm378mm
PFIW-400100mm22mm138mm141mm
PFIW-600150mm22mm188mm191mm
PFIW-800200mm130mm238mm264mm
PFIW-1000250mm155mm288mm314mm

PFI-PFIW installation Manual

View File
