PFT Series

PPDA

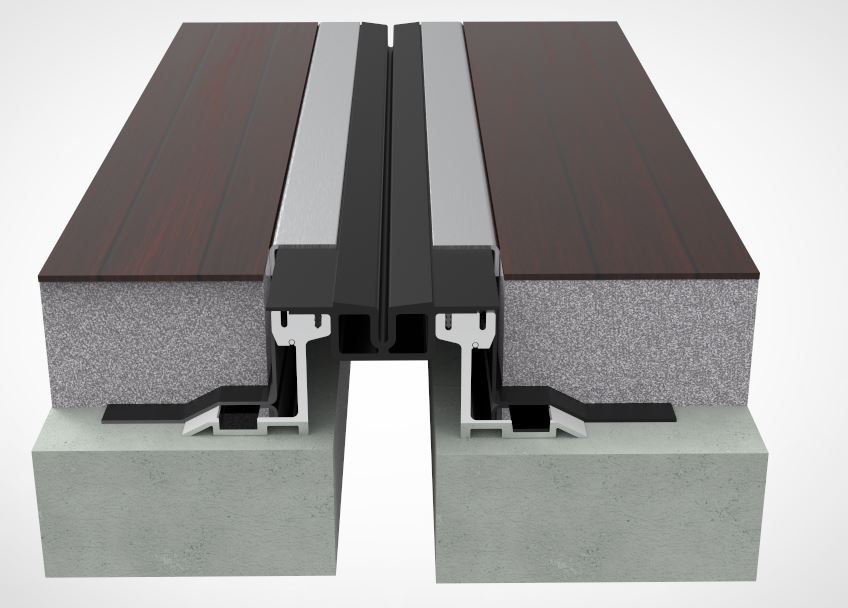

Tailored for exterior plaza deck applications, this cover is specifically designed to meet the demands of such environments. The primary seal is engineered to expand and contract, accommodating movement, while the wing seal overlays to create a watertight application. The wing seal is directly integrated into the deck waterproofing system. Joint sizes are flexible, ranging from 1" to 4". For larger sizes or custom applications, please contact the factory.

Request A Quote

PPDA & PPDAW TDS

View File

PPDA & PPDAW- 200X3

View File

PPDA & PPDAW 400X2

View File

PPDA & PPDAW 400X3

View File
MODELJOINT WIDTHMINIMUM OPENINGMAXIMUM OPENINGEXPOSED SURFACEBLOCKOUT WIDTHBLOCKOUT HEIGHT
 PPDA-20051mm19mm83mm121mm76mm 75mm
PPDA-400x2102mm38mm165mm171mm76mm51mm
PPDA-400x3102mm38mm165mm171mm76mm75mm
PPDAW-200  51mm19mm83mm86mm76mm75mm
 PPDAW-400x2102mm38mm165mm137mm76mm 51mm
PPDAW-400x3102mm38mm165mm137mm76mm75mm

PPDA & PPDS Installation Manual

View File
