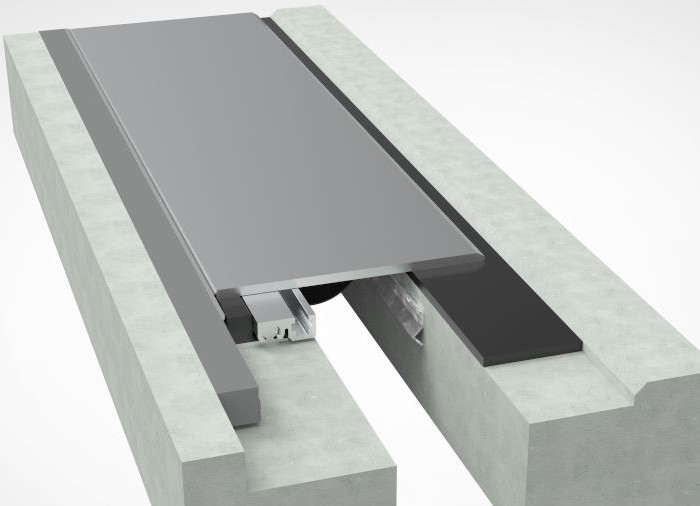

Tailored for parking structure applications, this seismic floor cover is specifically designed to address the unique challenges of such environments. It incorporates an additional dampening system to prevent noisy 'clunking' under dynamic traffic loads. These systems are engineered to accommodate both seismic and live load movements, including vertical deflection of the adjacent floor slab. Joint sizes are available within the range of 6" to 16". For larger sizes or custom applications, please contact the factory.

PPTCP-600

View File

PPTCP-800

View File

PPTCP-1000

View File

PPTCP 1200

View File

PPTCP 1400

View File

PPTCP 1600

View File
MODELJOINT WIDTHMINIMUM OPENINGMAXIMUM OPENINGEXPOSED SURFACEBLOCKOUT WIDTHBLOCKOUT HEIGHT
PPTCP-600152mm16mm241mm397mm127mm27mm
PPTCP-800203mm16mm318mm473mm152mm27mm
PPTCP-1000254mm16mm394mm549mm178mm27mm
PPTCP-1200305mm16mm470mm626mm203mm27mm
PPTCP-1400356mm16mm546mm702mm229mm27mm
PPTCP-1600406mm16mm622mm778mm254mm27mm
PPTCPW-600152mm16mm241mm279mm127mm27mm
PPTCPW-800203mm16mm318mm356mm152mm27mm
PPTCPW-1000254mm16mm394mm432mm178mm27mm
PPTCPW-1200305mm16mm470mm508mm203mm27mm
PPTCPW-1400356mm16mm546mm584mm229mm27mm
PPTCPW-1600406mm16mm622mm660mm254mm27mm

PPTCP & PPTCPW Installation Manual
