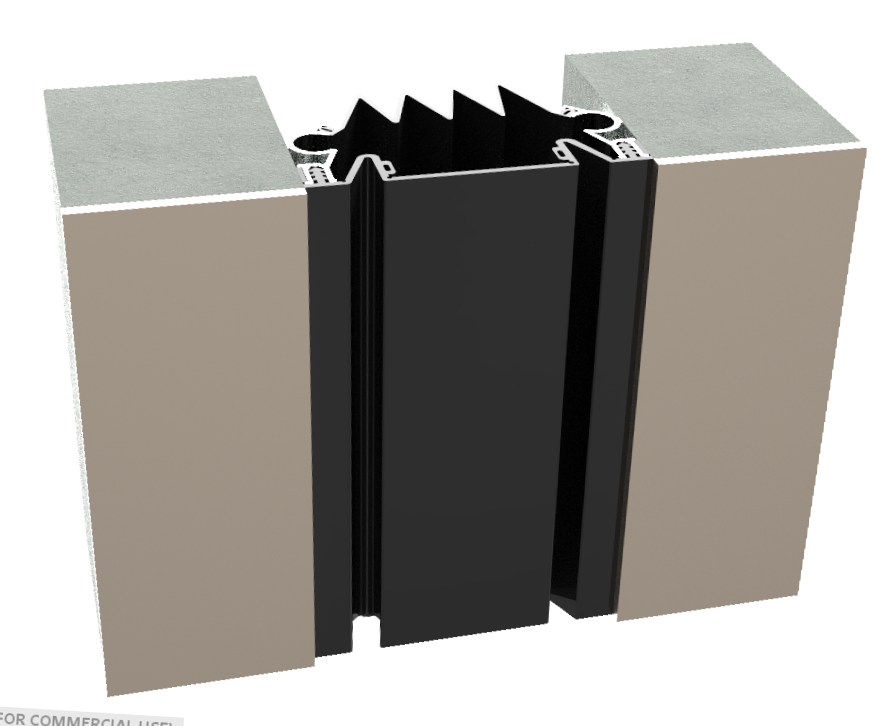

This gasketed, flush cover is designed to offer multi-directional movement in exterior vertical wall applications. The system includes a primary seal, which is available in multiple color options, and a secondary seal to ensure weather tightness. Joint sizes range from 2" to 24". Contact factory for larger sizes or custom applications.

PSF 200-600 TDS

View File

PSF 700-1000 TDS

View File
MODELJOINT WIDTHMINIMUM OPENINGMAXIMUM OPENINGEXPOSED SURFACEBLOCKOUT WIDTHBLOCKOUT HEIGHT
PSF-20051mm32mm76mm51mmN/AN/A
PSF-400102mm32mm152mm102mmN/AN/A
PSF-600152mm44mm229mm152mmN/AN/A
PSF-800 203mm64mm305mm203mmN/A N/A
PSF-1000 254mm64mm381mm254mmN/A N/A





PSF-200-500 Installation Manual

View File

PSF-600-1000 Installation Manual

View File
