PFT Series

PJPF

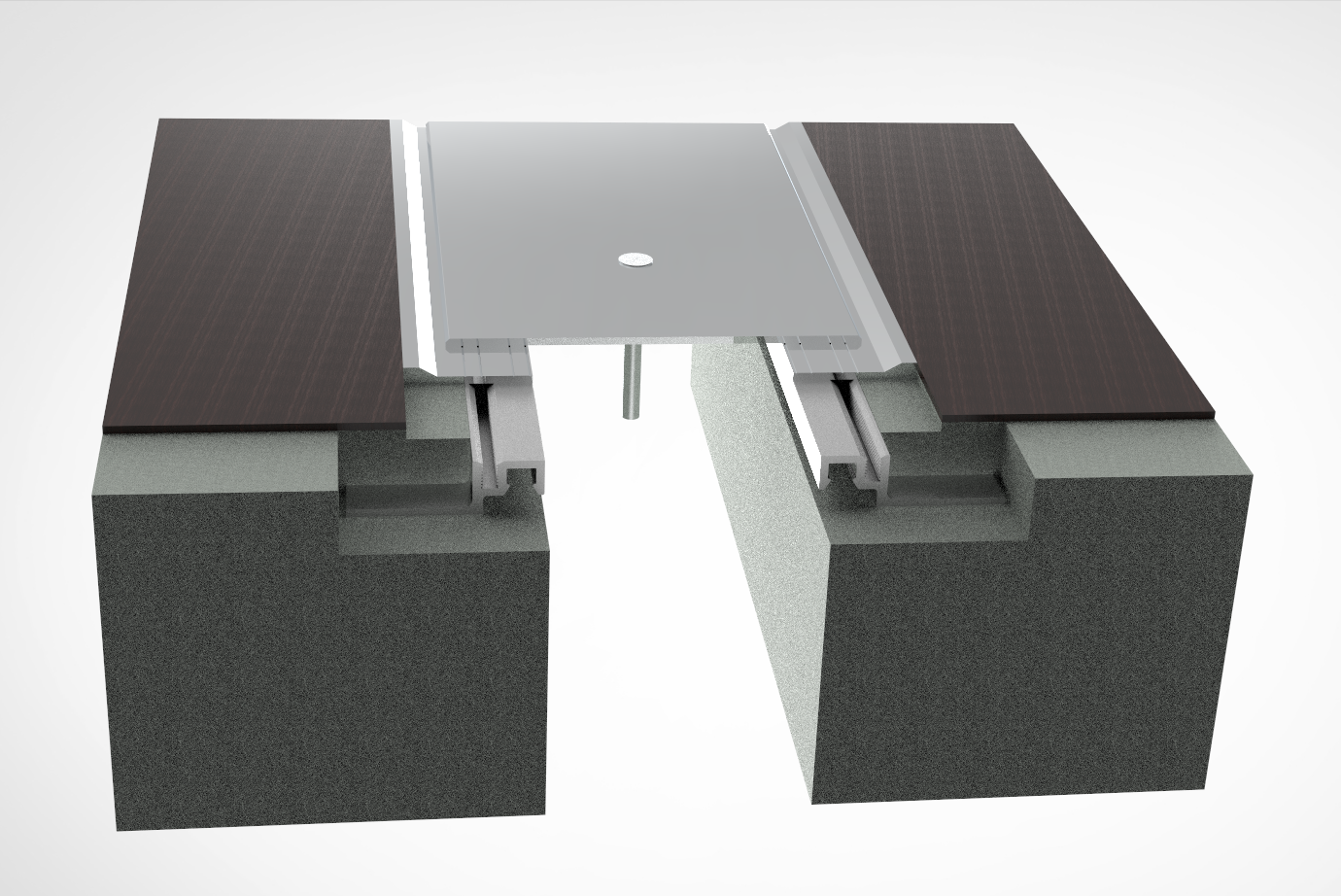

Designed for both interior and exterior applications where moderate seismic movement, up to 100%, is anticipated, this flush metal floor cover is engineered to accommodate such conditions. The self-centering aluminum center plate ensures a flush profile during thermal movement, while in the event of seismic activity, it temporarily displaces and slides over the floor surface. Joint sizes are available in a range from 1" to 16". For larger sizes or custom applications, please get in touch with the factory.

Request A Quote

PJPF & PJPFW TDS

View File

PJPF & PJPFW 200

View File

PJPF-400 & PJPFW-400

View File

PJPF-600 & PJPFW-600

View File

PJPF-800 & PJPFW-800

View File

PJPF-1000 & PJPFW-1000

View File

PJPF-1200 & PJPFW-1200

View File

PJPF-1400 & PJPFW-1400

View File

PJPF-1600 & PJPFW-1600

View File
MODEL JOINT WIDTH MINIMUM OPENING MAXIMUM OPENING EXPOSED SURFACE BLOCKOUT WIDTH BLOCKOUT HEIGHT
PJPF-200 51mm 25mm 89mm 102mm 57mm 42mm
PJPF-400 102mm 25mm 165mm 203mm 76mm 29mm
PJPF-600 152mm 25mm 251mm 293mm 76mm 29mm
PJPF-800 203mm 27mm 298mm 370mm 75mm 29mm
PJPF-1000 254mm 64mm 381mm 445mm 117mm 33mm
PJPF-1200 305mm 64mm 425mm 509mm 124mm 33mm
PJPF-1400 356mm 64mm 527mm 585mm 137mm 33mm
PJPF-1600 406mm 64mm 603mm 662mm  150mm  33mm
PJPFW-200   51mm 0mm 76mm 77mm 57mm 42mm
PJPFW-400   102mm 0mm 133mm 152mm 76mm 29mm
PJPFW-600   150mm 0mm 202mm 223mm 76mm 29mm
PJPFW-800   200mm 114mm 254mm 297mm 75mm 29mm
PJPFW-1000   250mm 159mm 318mm 350mm 117mm 33mm
PJPFW-1200   300mm 184mm 381mm 407mm 124mm 33mm
PJPFW-1400   350mm 210mm 488mm 470mm 137mm 33mm
PJPFW-1600   400mm 236mm 527mm 534mm  150mm  33mm
