PFT Series

PWF

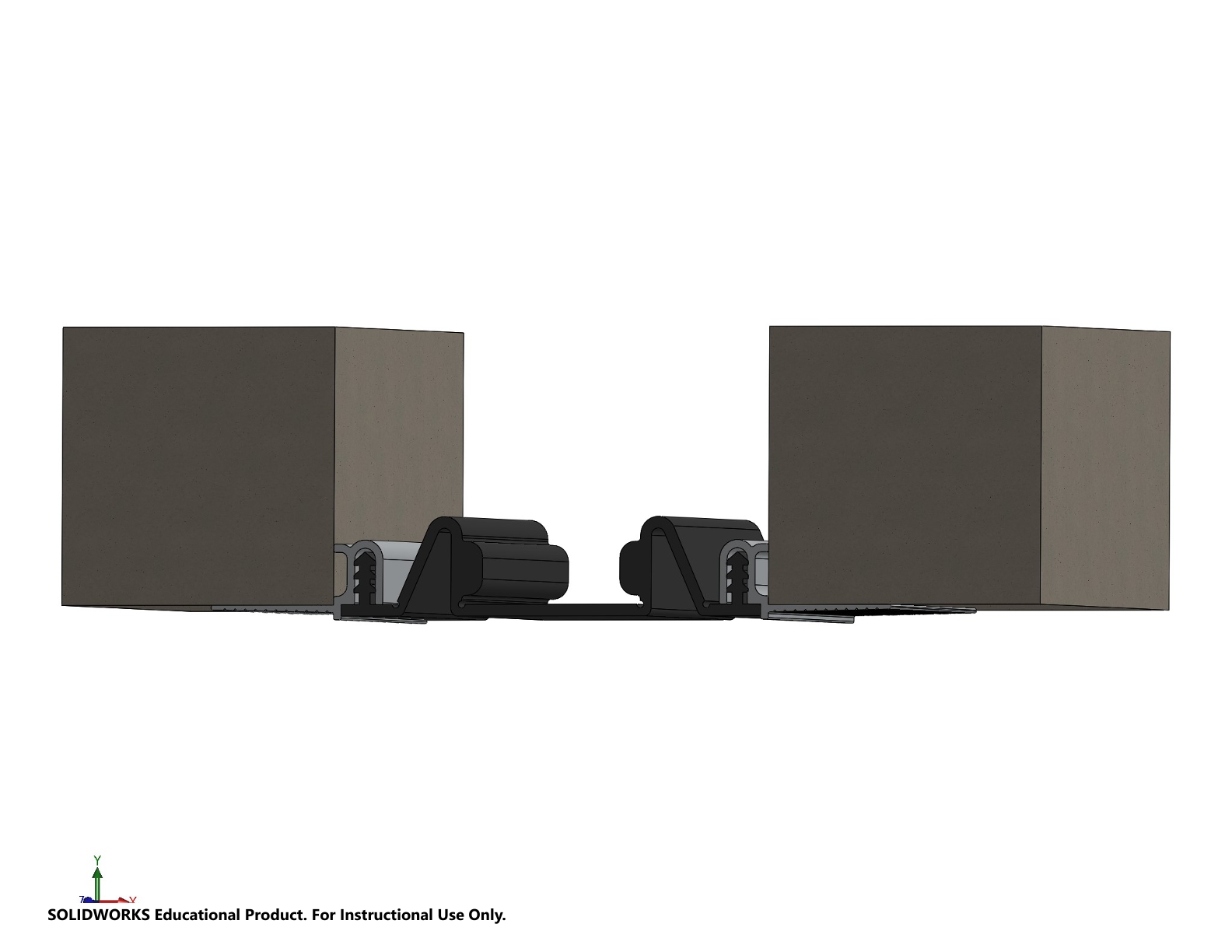

Ideal for interior applications where a discreet appearance is favored, these flush, single-gasket wall and ceiling covers are designed to complement specific flush floor covers. The gasket features a softer center section that facilitates full movement and is available in four standard color options. Joint sizes are adaptable, ranging from 1" to 2". For larger sizes or custom applications, please get in touch with the factory.

Request A Quote

PWF & PWFC TDS

View File

PWF 100 & PWFC 100

View File

PWF 200 & PWFC 200

View File

PWF 400 & PWFC 400

View File

PWF 600 & PWFC 600

View File
MODEL JOINT WIDTH MINIMUM OPENING MAXIMUM OPENING EXPOSED SURFACE BLOCKOUT WIDTH BLOCKOUT HEIGHT
PWF-10025mm19mm  32mm  111mm  N/A   N/A
PWF-20051mm38mm  64mm  132mm   N/A  N/A
PWF-400102mm32mm152mm185mm N/A  N/A
PWF-600152mm44mm229mm235mm N/A  N/A
PWFC-10025mm19mm  32mm  68mm   N/A  N/A
PWFC-20051mm38mm  64mm  92mm   N/A  N/A
PWFC-400102mm32mm152mm143mm N/A  N/A
PWFC-600152mm44mm229mm194mm N/A  N/A
